| SOP/SOIC系列适配器选型指南
运行SUPERPRO软件，选择相应的器件，务必确定选择了正确的器件名称和封装类型。AT89C51和AT89C51-P44就是不同的器件(因封装不同)，前者是DIP封装，后者是PLCC44封装。当选择AT89C51-P44时，软件就会弹出窗口显示所需要的适配器型号和芯片放置方法。通过这种方式能选定大多数适配器。对于一些经济型号，可能在器件列表中找不到相应的封装类型，请参考PLCC适配器列表（见下表）。
SOP/SOIC适配器列表
SUPERPRO/EZ18K/16K/12K/G21/XP/3000U/580U/280U/8000/2000/680/580/V/III适配器列表
|
Part |
W(mm) |
P(mm) |
Example Device |
Image |
|
SSOP24/24D |
4.3 |
0.65 |
ATMEL CATALYST 34C02 |
查看 |
|
SOP8/8D |
4.0 |
1.27 |
x17xx |
查看 |
|
PSOP44/44D |
13 |
1.27 |
AM29BL400B/800B |
查看 |
|
SOIC8/8D |
5.2 |
1.27 |
Catalyst 24WC64 |
查看 |
|
SOIC16/16D |
4.0 |
1.27 |
x17xx, 93Cxx |
查看 |
|
SOIC20/16D |
5.2 |
1.27 |
24Cxx |
查看 |
|
SOIC20/20D |
4.4 |
0.65 |
AT89C2051, LG97C2051 |
查看 |
|
SOIC20/20D |
5.3 |
1.27 |
24WC64 |
查看 |
|

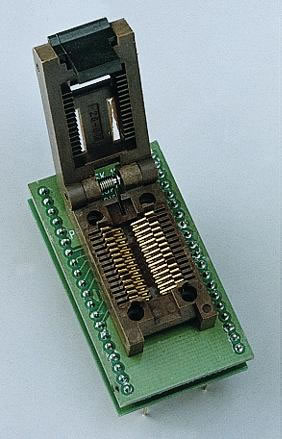

SOIC28/28D |
7.8 |
1.27 |
PIC16C5x,89C2051, COP8Sx |
查看 |
|

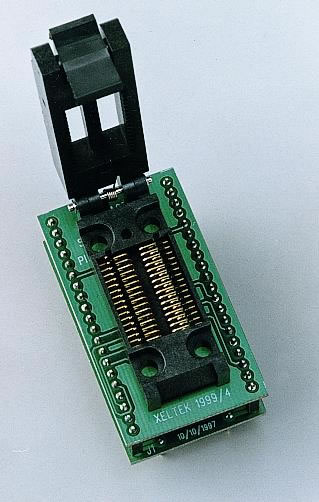

SOIC32/32D |
11.6 |
1.27 |
27C010/020/040 |
查看 |
|
SOIC32/32D |
8.9 |
1.27 |
ATMEL 894D12 |
查看 |
|
SSOP32/32D |
5.3 |
0.65 |
Atmel Catalyst 34W02... |
|
|

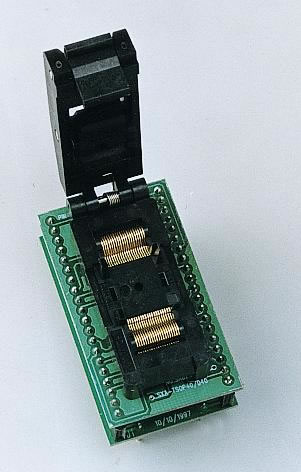

SSOP28/28D |
11.8*8.2 |
0.55 |
28C64 |
查看 |
|

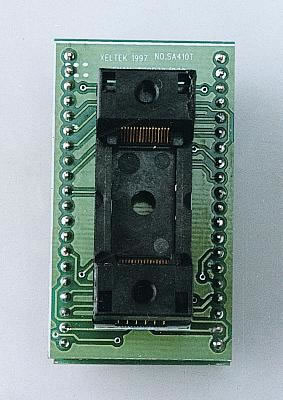

TSOP32/32D |
8.2*18.3 |
0.5 |
27C010 |
查看 |
|
TSOP32/32D |
12.4*8.2 |
0.5 |
SONY 28F400 |
查看 |
|

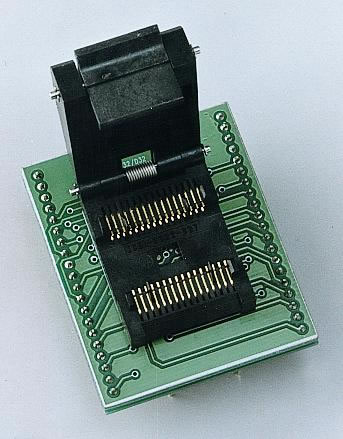

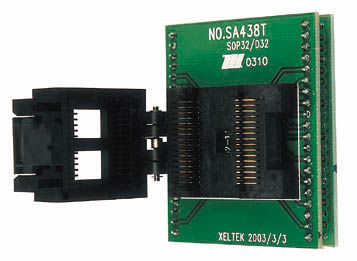

SOP32/32D |
11.6 |
1.27 |
Winbond 29C020 |
查看 |
|

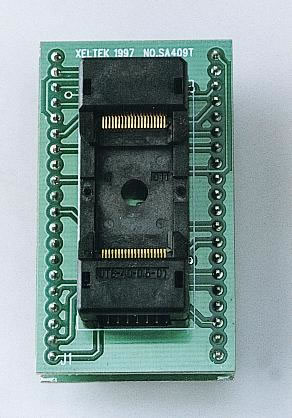

TSOP40/40D |
18.4*10.2 |
0.5 |
28F002/004/008, 29F002/004/008 |
查看 |
|
TSOP40/40D |
12.3*10 |
0.5 |
26C1024 |
查看 |
|

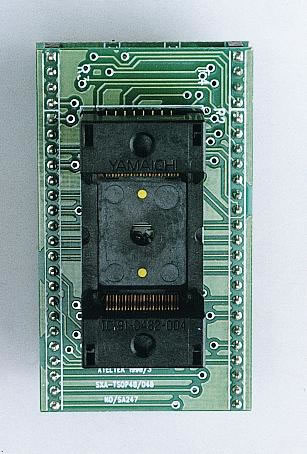

TSOP48/48D |
18.4*12.2 |
0.5 |
28F200/400/800, 29F100/200/400 |
查看 |
|
TSOP48/48D |
16*12.2 |
0.5 |
SHARP LH532GYE |
查看 |
|
TSOP48/48D |
12.4 |
0.4 |
Sharp LRS1306... |
查看 |
|

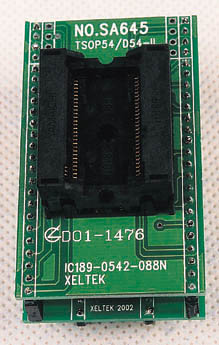

TSOP54/48D |
10.16 |
0.8 |
CY7C1021, IDT71016 |
查看 |
|
TSOP54/48D |
10.16 |
0.8 |
MICRON MT28S4M16LC |
查看 |
|

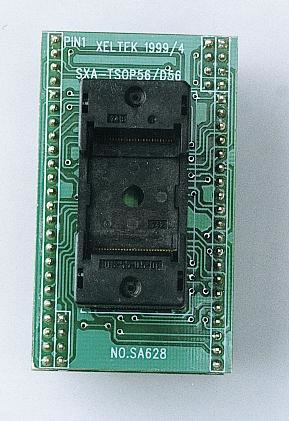

TSOP56/48D |
18.4*14 |
0.5 |
INTEL 28F016/032SA/SV/XS |
查看 |
|
TSOP56/48D |
18.4*14 |
0.5 |
INTEL 28F200BV |
查看 |
|
TSOP56/48D |
18.4*14 |
0.5 |
INTEL 28F800S3 |
查看 |
|
TSOP56/48D |
18.4*14 |
0.5 |
Atmel AT49BV1604 |
查看 |
|
TSOP56/48D |
18.4*14 |
0.5 |
INTEL 28F128/320/640J3A |
查看 |
|
TSOP56/48D |
18.4*14 |
0.5 |
ST M58LW032A |
查看 |
|
TSOP56/48D |
18.4*14 |
0.5 |
AM29LV640MH/L |
查看 |
|
SSOP56/48D |
15.6 |
0.4 |
Intel 28F160S3 |
查看 |
|
SSOP56/48D |
15.6 |
0.4 |
Intel 28F800F3 |
查看 |
|
SSOP56/48D |
15.6 |
0.4 |
AMD Am29LV640/641D |
查看 |
|
SSOP56/48D |
15.6 |
0.4 |
AMD Am29BL162C |
查看 |
|

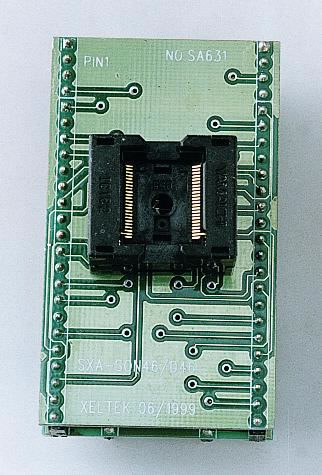

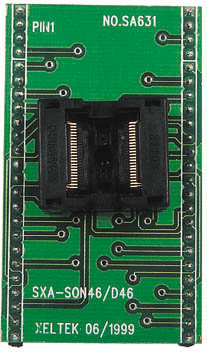

SON46/46D |
9.6 |
0.4 |
Fujitsu 29LV800TA |
查看 |
|
SOJ32/32D |
7.4 |
1.27 |
CY7C199 |
|
SUPERPRO/GH/GX/1000/280/L+/Z适配器列表
|
Part |
W(mm) |
P(mm) |
Example Device |
Image |
|
SSOP24/24D |
4.3 |
0.65 |
ATMEL CATALYST 34C02 |
|
|
SOP8/8D |
4.0 |
1.27 |
x17xx |
|
|
PSOP44/44D |
13 |
1.27 |
AM29BL400B/800B |
|
|
SOIC8/8D |
5.2 |
1.27 |
Catalyst 24WC64 |
|
|
SOIC16/16D |
4.0 |
1.27 |
x17xx, 93Cxx |
|
|
SOIC20/16D |
5.2 |
1.27 |
24Cxx |
|
|
SOIC20/20D |
4.4 |
0.65 |
AT89C2051, LG97C2051 |
|
|
SOIC20/20D |
5.3 |
1.27 |
24WC64 |
|
|
SOIC28/28D |
7.8 |
1.27 |
PIC16C5x,89C2051, COP8Sx |
|
|
SOIC32/32D |
11.6 |
1.27 |
27C010/020/040 |
|
|
SOIC32/32D |
8.9 |
1.27 |
ATMEL 894D12 |
|
|
SSOP28/28D |
5.3 |
0.65 |
Atmel catalyst 34w02 |
|
|
SSOP32/32D |
5.3 |
0.65 |
Atmel Catalyst 34W02... |
|
|
SSOP28/28D |
11.8*8.2 |
0.55 |
28C64 |
|
|
TSOP32/32D |
8.2*18.3 |
0.5 |
27C010 |
|
|
TSOP32/32D |
12.4*8.2 |
0.5 |
SONY 28F400 |
|
|
SOP32/32D |
11.6 |
1.27 |
Winbond 29C020 |
|
|
TSOP40/40D |
18.4*10.2 |
0.5 |
28F002/004/008, 29F002/004/008 |
|
|
TSOP40/40D |
12.3*10 |
0.5 |
26C1024 |
|
|
TSOP48/48D |
18.4*12.2 |
0.5 |
28F200/400/800, 29F100/200/400 |
|
|

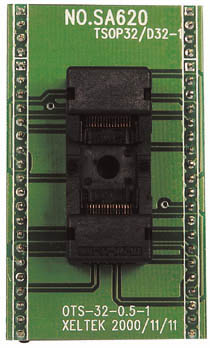

TSOP32/32D-1 |
12.4*8.2 |
0.5 |
|
|
|
